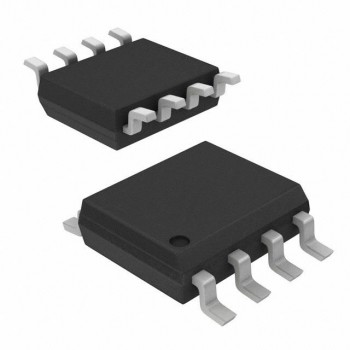

HCPL-7601-500E

Technical Details

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Number of Channels:1
• Inputs - Side 1/Side 2:1/0
• Voltage - Isolation:3750Vrms
• Common Mode Transient Immunity (Min):1kV/µs
• Input Type:DC
• Output Type:Open Collector, Schottky Clamped
• Current - Output / Channel:50 mA

• Data Rate:10MBd
• Propagation Delay tpLH / tpHL (Max):75ns, 75ns
• Rise / Fall Time (Typ):24ns, 10ns
• Voltage - Forward (Vf) (Typ):1.5V
• Current - DC Forward (If) (Max):20mA
• Voltage - Supply:4.5V ~ 5.5V
• Operating Temperature:-40°C ~ 85°C
• Mounting Type:Surface Mount
• Package / Case:8-SMD, Gull Wing
• Supplier Device Package:8-DIP Gull Wing
