HCPL-2300#560

Technical Details

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Discontinued at Digi-Key
• Number of Channels:1
• Inputs - Side 1/Side 2:1/0
• Voltage - Isolation:3750Vrms
• Common Mode Transient Immunity (Min):100V/µs
• Input Type:DC
• Output Type:Open Collector, Schottky Clamped
• Current - Output / Channel:25 mA

• Data Rate:5MBd
• Propagation Delay tpLH / tpHL (Max):160ns, 200ns
• Rise / Fall Time (Typ):40ns, 20ns
• Voltage - Forward (Vf) (Typ):1.3V
• Current - DC Forward (If) (Max):5mA (Typ)
• Voltage - Supply:4.75V ~ 5.25V
• Operating Temperature:-40°C ~ 85°C
• Mounting Type:Surface Mount

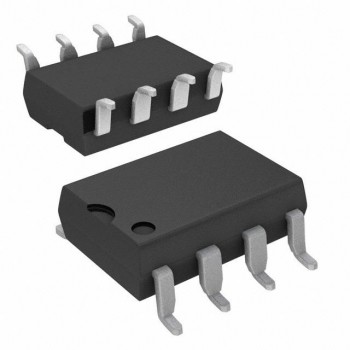

• Package / Case:8-SMD, Gull Wing
• Supplier Device Package:8-DIP Gull Wing
