L1CU-CYN1000000000
Philips (LUMILEDS)- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED LUXEON CZ CYAN SMD
- CategoryLED Lighting - Color
- Datasheet L1CU-CYN1000000000 Datasheet
-
ECAD Model
- Share
In Stock: 381
Can ship immediately
Pricing:
- 1$3.07
- 1,000$1.12363
Quote It
Technical Details
- Series:LUXEON CZ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Color:Cyan
- Wavelength:500nm (490nm ~ 510nm)
- Current - Test:350mA
- Voltage - Forward (Vf) (Typ):3.05V
- Lumens/Watt @ Current - Test:68 lm/W
- Current - Max:1.05A
- Luminous Flux @ Current/Temperature:73lm (Typ)
- Temperature - Test:85°C
- Viewing Angle:120°
- Mounting Type:Surface Mount
- Package / Case:3-SMD, No Lead
- Supplier Device Package:3-SMD
- Size / Dimension:0.079" L x 0.079" W (2.00mm x 2.00mm)
- Height - Seated (Max):0.036" (0.92mm)
Related Products
TOP VIEW 3535 3.5X3.5X2.0
- 1: $3.07000
- 1000: $1.17810
- 2000: $1.11384
TOP VIEW 3535 3.5X3.5X2.8
- 1: $3.07000
- 500: $1.37088
- 1000: $1.17810
LED YELLOW 590NM SMD
- 1: $3.13000
- 1000: $1.63500

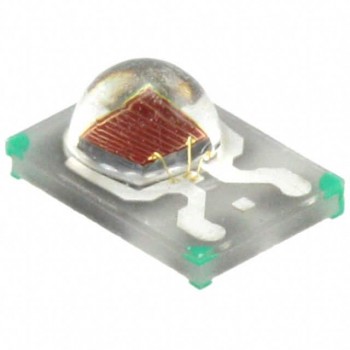

LED SHUEN 1W HI POWER RED SMD
