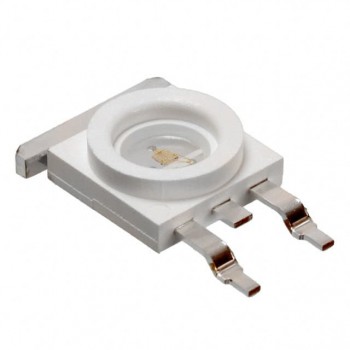

ASMT-MA00-AGHN0
Broadcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionPWR LED SOURCE 1W AMBER ALINGAP
- CategoryLED Lighting - Color
- Datasheet ASMT-MA00-AGHN0 Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$2.39666
- 1,500$2.261
Quote It
Technical Details
- Series:Moonstone™
- Package:Tube
- Part Status:Active
- Color:Amber
- Wavelength:591nm (587nm ~ 595nm)
- Current - Test:350mA
- Voltage - Forward (Vf) (Typ):2.4V
- Lumens/Watt @ Current - Test:40 lm/W
- Current - Max:350mA
- Luminous Flux @ Current/Temperature:34lm (26lm ~ 43lm)
- Temperature - Test:25°C
- Viewing Angle:120°
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:-
- Size / Dimension:0.335" L x 0.335" W (8.50mm x 8.50mm)
- Height - Seated (Max):0.134" (3.40mm)
