GF CS8PM2.24-4S2T-1-0-350-R18
OSRAM Opto Semiconductors, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

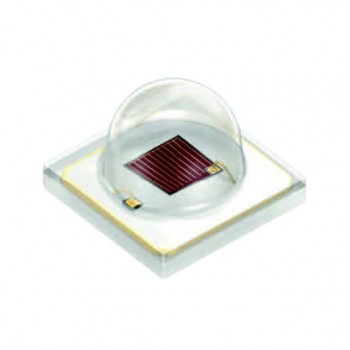

- DescriptionLED OSLON SSL80 RED 727NM SMD
- CategoryLED Lighting - Color
- Datasheet GF CS8PM2.24-4S2T-1-0-350-R18 Datasheet
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:OSLON® SSL 80
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Color:Red
- Wavelength:727nm (Typ)
- Current - Test:350mA
- Voltage - Forward (Vf) (Typ):1.85V
- Lumens/Watt @ Current - Test:-
- Current - Max:1A
- Luminous Flux @ Current/Temperature:269mW (224mW ~ 315mW)
- Temperature - Test:25°C
- Viewing Angle:80°
- Mounting Type:Surface Mount
- Package / Case:1212 (3030 Metric)
- Supplier Device Package:SMD
- Size / Dimension:0.118" L x 0.118" W (3.00mm x 3.00mm)
- Height - Seated (Max):0.097" (2.46mm)
