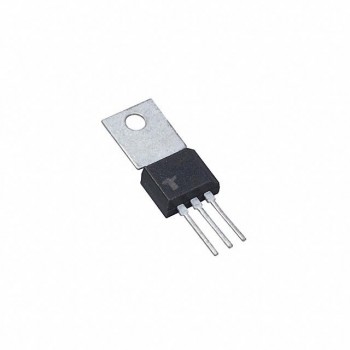

S2006LS3

Technical Details

• Series:-
• Package:Bulk
• Part Status:Obsolete
• Voltage - Off State:200 V
• Voltage - Gate Trigger (Vgt) (Max):800 mV
• Current - Gate Trigger (Igt) (Max):500 µA
• Voltage - On State (Vtm) (Max):1.6 V
• Current - On State (It (AV)) (Max):3.8 A
• Current - On State (It (RMS)) (Max):6 A

• Current - Hold (Ih) (Max):8 mA
• Current - Off State (Max):5 µA
• Current - Non Rep. Surge 50, 60Hz (Itsm):83A, 100A
• SCR Type:Sensitive Gate
• Operating Temperature:-40°C ~ 110°C
• Mounting Type:Through Hole
• Package / Case:TO-220-3 Isolated Tab
• Supplier Device Package:TO-220 Isolated Tab
