RM5/I-3F36-A160

FERROXCUBE
In Stock: 158

Can ship immediately

Pricing:
  • 1$0.58544
  • 500$0.58544

Quote It

Technical Details

  • Series:*
  • Package:Bulk
  • Part Status:Active
  • Core Type:RM
  • Supplier Device Package:RM 5
  • Material:3F36
  • Diameter:-
  • Inductance Factor (Al):160 nH
  • Tolerance:±3%
  • Gap:Gapped
  • Effective Permeability (µe):120



  • Initial Permeability (µi):-
  • Core Factor (ΣI/A) mm-1:0.935
  • Effective Length (le) mm:23.2
  • Effective Area (Ae) mm²:24.8
  • Minimum Core Cross Section (Amin) mm²:18.1
  • Effective Magnetic Volume (Ve) mm³:574
  • Finish:Uncoated
  • Height:10.40mm
  • Length:14.90mm
  • Width:12.30mm

Related Products


RM5/I-3F46

RM CORES 2PC SET

RM5/I-3F46 Datasheet
  • 1: $0.58544
  • 500: $0.58544

E34/14/9-3C94-G500
  • 1: $0.58606
  • 672: $0.58606

6678212021

78 PQ CORE SET

6678212021 Datasheet
  • 1: $0.58649
  • 536: $0.42481

B65843A0100A065
  • 1: $0.58719
  • 1500: $0.58719

B65843A0125A065
  • 1: $0.58719
  • 1500: $0.58719

ETD34/17/11-3F36-G200
  • 1: $0.58935
  • 588: $0.58935

3061990891
  • 1: $0.59052
  • 2880: $0.44715

EFD25/13/9-3C95-A160
  • 1: $0.59085
  • 896: $0.59085

EFD25/13/9-3C95-A250
  • 1: $0.59085
  • 896: $0.59085

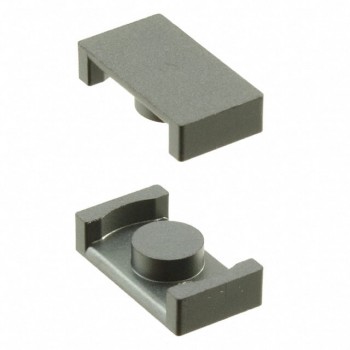

B65525J0000R092
