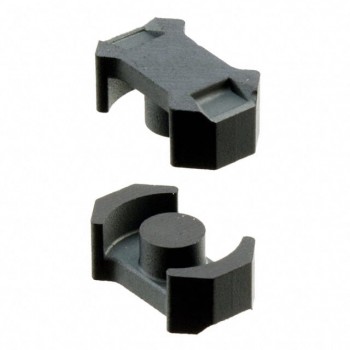

B65803P0000R092
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFERRITE CORE RM 1UH N92 2PCS
- CategoryFerrite Cores
- Datasheet B65803P0000R092 Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$1.0233
- 1,600$1.01425
Quote It
Technical Details
- Series:B65803P
- Package:Box
- Part Status:Active
- Core Type:RM
- Supplier Device Package:RM 4 LP
- Material:N92
- Diameter:-
- Inductance Factor (Al):1 µH
- Tolerance:-20%, +30%
- Gap:Ungapped
- Effective Permeability (µe):950
- Initial Permeability (µi):1500
- Core Factor (ΣI/A) mm-1:1.2
- Effective Length (le) mm:17.3
- Effective Area (Ae) mm²:14.5
- Minimum Core Cross Section (Amin) mm²:11.3
- Effective Magnetic Volume (Ve) mm³:251
- Finish:Uncoated
- Height:3.90mm
- Length:11.00mm
- Width:4.60mm
