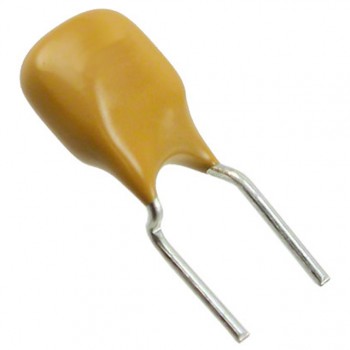

250R120-R3ZR

Technical Details

• Series:POLY-FUSE®, 250R
• Package:Tape & Box (TB)
• Part Status:Obsolete
• Type:Polymeric
• Voltage - Max:60V (250V Int)
• Current - Max:3 A
• Current - Hold (Ih) (Max):120 mA
• Current - Trip (It):240 mA
• Time to Trip:2.5 s
• Resistance - Initial (Ri) (Min):8 Ohms

• Resistance - Post Trip (R1) (Max):16 Ohms
• Resistance - 25°C (Typ):-
• Operating Temperature:-40°C ~ 85°C
• Ratings:-
• Mounting Type:Through Hole
• Package / Case:Radial, Disc
• Size / Dimension:0.256" L x 0.181" W (6.50mm x 4.60mm)
• Height - Seated (Max):0.433" (11.00mm)
• Thickness (Max):-
• Lead Spacing:0.201" (5.10mm)
