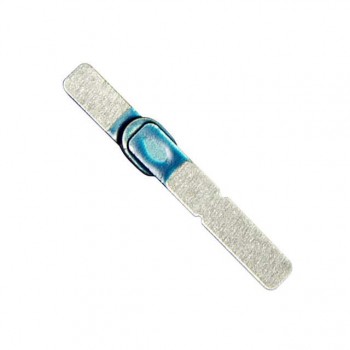

MF-S175S

Technical Details

• Series:Multifuse®, MF-S
• Package:Bulk
• Part Status:Obsolete
• Type:Polymeric
• Voltage - Max:15V
• Current - Max:100 A
• Current - Hold (Ih) (Max):1.75 A
• Current - Trip (It):3.8 A
• Time to Trip:4 s
• Resistance - Initial (Ri) (Min):50 mOhms

• Resistance - Post Trip (R1) (Max):120 mOhms
• Resistance - 25°C (Typ):-
• Operating Temperature:-40°C ~ 85°C
• Ratings:-
• Mounting Type:User Defined
• Package / Case:Strap
• Size / Dimension:0.827" L x 0.199" W (21.00mm x 5.05mm)
• Height - Seated (Max):-
• Thickness (Max):0.039" (1.00mm)
• Lead Spacing:-
