9462-0-15-80-21-14-04-0

Mill-Max
In Stock: 200

Can ship immediately

Pricing:
  • 1$0.63456
  • 1,000$0.63456

Quote It

Technical Details

  • Series:9462
  • Package:Bulk
  • Part Status:Active
  • Tail Type:Standard Tail
  • Termination:Press-Fit, Hex
  • Length - Overall:0.290" (7.37mm)
  • Accepts Pin Diameter:0.015" ~ 0.022" (0.38mm ~ 0.56mm)
  • Accepts Square Pin Size:-



  • Pin Hole Diameter:0.031" (0.79mm)
  • Mounting Hole Diameter:0.043" (1.09mm)
  • Flange Diameter:0.054" (1.37mm)
  • Tail Diameter:0.020" (0.51mm)
  • Socket Depth:0.015" (0.38mm)
  • Contact Material:Beryllium Copper
  • Contact Finish:Gold
  • Contact Finish Thickness:10.0µin (0.25µm)

Related Products


1610-0-15-01-30-02-04-0

CONN PIN RCPT .015-.025 PRESSFIT

1610-0-15-01-30-02-04-0 Datasheet
  • 1: $0.63493
  • 1000: $0.63493

0273-0-15-01-16-01-10-0

CONN PIN RCPT .022-.034 PRESSFIT

0273-0-15-01-16-01-10-0 Datasheet
  • 1: $0.63504
  • 1000: $0.63504

0399-1-15-01-47-01-04-0

CONN PIN RCPT .025-.037 PRESSFIT

0399-1-15-01-47-01-04-0 Datasheet
  • 1: $0.63504
  • 1000: $0.63504

0273-0-15-80-16-80-10-0
  • 1: $0.63504
  • 1000: $0.63504

0399-1-15-80-47-80-04-0
  • 1: $0.63504
  • 1000: $0.63504

1702-2-17-80-30-14-02-0
  • 1: $0.63504
  • 1000: $0.63504

4094-0-15-01-47-01-04-0

CONN PIN RCPT

  • 1: $0.63504
  • 1000: $0.63504

4094-0-15-80-47-80-04-0

CONN PIN RCPT

  • 1: $0.63504
  • 1000: $0.63504

0331-0-15-01-18-01-10-0

CONN PIN RCPT .037-.043 SOLDER

0331-0-15-01-18-01-10-0 Datasheet
  • 1: $0.63536
  • 1000: $0.63536

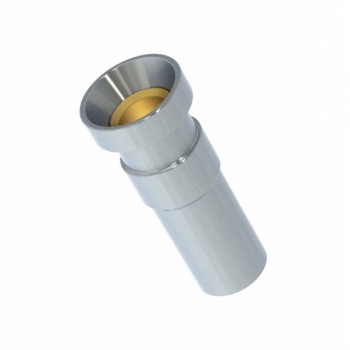

0678-0-15-01-32-27-10-0
