9900-0-15-15-22-27-04-0
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSTANDARD I.C. RECEPTACLE
- CategoryTerminals - PC Pin Receptacles, Socket Connectors
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$0.6768
Quote It
Technical Details
- Series:9900
- Package:Bulk
- Part Status:Active
- Tail Type:Standard Tail
- Termination:Press-Fit
- Length - Overall:0.307" (7.80mm)
- Accepts Pin Diameter:0.015" ~ 0.022" (0.38mm ~ 0.56mm)
- Accepts Square Pin Size:-
- Pin Hole Diameter:0.043" (1.09mm)
- Mounting Hole Diameter:0.056" (1.42mm)
- Flange Diameter:0.070" (1.78mm)
- Tail Diameter:0.020" (0.51mm)
- Socket Depth:0.110" (2.79mm)
- Contact Material:Beryllium Copper
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
Related Products

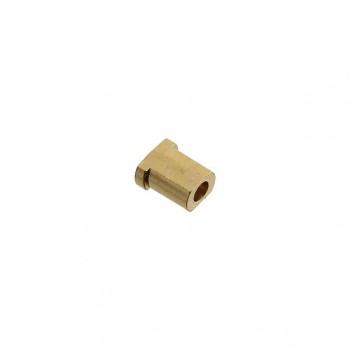

CONTACT PIN RECEPTACLE
