0309-2-15-80-47-80-10-0
Mill-Max- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PIN RCPT
- CategoryTerminals - PC Pin Receptacles, Socket Connectors
- Datasheet 0309-2-15-80-47-80-10-0 Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$0.72272
- 1,000$0.72048
Quote It
Technical Details
- Series:0309
- Package:Bulk
- Part Status:Active
- Tail Type:Standard Tail
- Termination:Solder
- Length - Overall:0.700" (17.78mm)
- Accepts Pin Diameter:0.025" ~ 0.037" (0.64mm ~ 0.94mm)
- Accepts Square Pin Size:-
- Pin Hole Diameter:0.051" (1.30mm)
- Mounting Hole Diameter:0.042" (1.07mm)
- Flange Diameter:0.078" (1.98mm)
- Tail Diameter:0.040" (1.02mm)
- Socket Depth:0.250" (6.35mm)
- Contact Material:Beryllium Copper
- Contact Finish:Tin
- Contact Finish Thickness:200.0µin (5.08µm)
Related Products

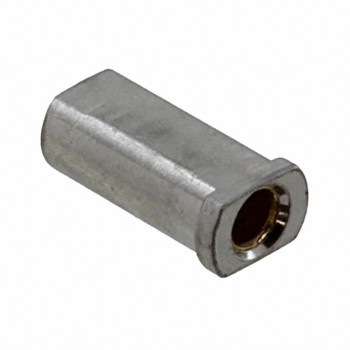

CONN RECEPT PIN .015-.025" .115"
