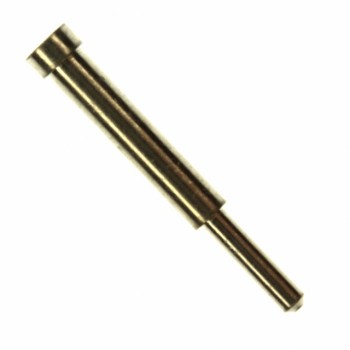

0336-0-15-80-34-14-04-0
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PIN RCPT
- CategoryTerminals - PC Pin Receptacles, Socket Connectors
- Datasheet 0336-0-15-80-34-14-04-0 Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
- 1$0.74432
- 1,000$0.73728
Quote It
Technical Details
- Series:0336
- Package:Bulk
- Part Status:Active
- Tail Type:Standard Tail
- Termination:Press-Fit
- Length - Overall:0.385" (9.78mm)
- Accepts Pin Diameter:0.032" ~ 0.046" (0.81mm ~ 1.17mm)
- Accepts Square Pin Size:-
- Pin Hole Diameter:0.064" (1.63mm)
- Mounting Hole Diameter:0.089" (2.26mm)
- Flange Diameter:0.119" (3.02mm)
- Tail Diameter:0.040" (1.02mm)
- Socket Depth:0.205" (5.21mm)
- Contact Material:Beryllium Copper
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
