714-87-115-41-001101
Preci-Dip- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PIN RCPT .016-.022 SOLDER
- CategoryTerminals - PC Pin Receptacles, Socket Connectors
- Datasheet 714-87-115-41-001101 Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$0.7768
- 1,000$0.7041
Quote It
Technical Details
- Series:714
- Package:Strip
- Part Status:Active
- Tail Type:No Tail
- Termination:Solder
- Length - Overall:0.165" (4.19mm)
- Accepts Pin Diameter:0.016" ~ 0.022" (0.41mm ~ 0.56mm)
- Accepts Square Pin Size:-
- Pin Hole Diameter:-
- Mounting Hole Diameter:0.055" ~ 0.071" (1.40mm ~ 1.80mm)
- Flange Diameter:0.072" (1.83mm)
- Tail Diameter:-
- Socket Depth:0.146" (3.71mm)
- Contact Material:Beryllium Copper
- Contact Finish:Gold
- Contact Finish Thickness:Flash
Related Products

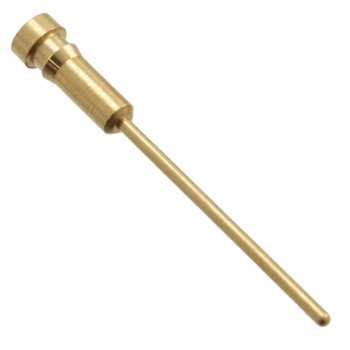

CONN RECEPT PIN .025-.037" .200"
