3018-0-15-80-30-14-04-0

Mill-Max
In Stock: 139

Can ship immediately

Pricing:
  • 1$0.7974
  • 1,000$0.7926

Quote It

Technical Details

  • Series:3018
  • Package:Bulk
  • Part Status:Active
  • Tail Type:Standard Tail
  • Termination:Press-Fit
  • Length - Overall:1.276" (32.40mm)
  • Accepts Pin Diameter:0.015" ~ 0.025" (0.38mm ~ 0.64mm)
  • Accepts Square Pin Size:-



  • Pin Hole Diameter:0.043" (1.09mm)
  • Mounting Hole Diameter:0.057" (1.45mm)
  • Flange Diameter:0.071" (1.80mm)
  • Tail Diameter:0.020" (0.51mm)
  • Socket Depth:0.155" (3.94mm)
  • Contact Material:Beryllium Copper
  • Contact Finish:Gold
  • Contact Finish Thickness:10.0µin (0.25µm)

Related Products


5650-0-19-15-16-14-10-0
  • 1: $0.79740
  • 1000: $0.77685

0153-4-15-15-30-27-04-0

CONN PIN RCPT .015-.025 PRESSFIT

0153-4-15-15-30-27-04-0 Datasheet
  • 1: $0.79760
  • 1000: $0.77456

0323-1-15-80-34-14-10-0
  • 1: $0.79760
  • 1000: $0.79024

0345-0-15-15-34-14-10-0
  • 1: $0.79770
  • 1000: $0.77415

0322-0-15-80-34-14-10-0
  • 1: $0.79840
  • 1000: $0.79136

0086-4-17-15-30-27-02-0

CONN PIN RCPT .015-.025 PRESSFIT

0086-4-17-15-30-27-02-0 Datasheet
  • 1: $0.79845
  • 1000: $0.77310

0324-5-15-01-34-01-10-0

CONN PIN RCPT .032-.046 SWAGE

0324-5-15-01-34-01-10-0 Datasheet
  • 1: $0.79845
  • 1000: $0.79545

0664-2-15-01-06-27-10-0

CONN PIN RCPT .022-.032 SWAGE

0664-2-15-01-06-27-10-0 Datasheet
  • 1: $0.79845
  • 1000: $0.78495

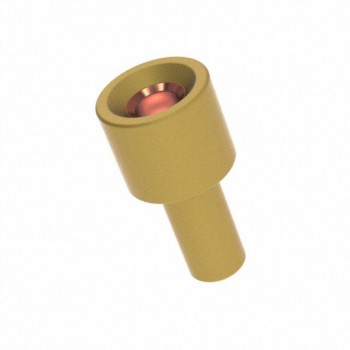

0284-0-15-15-16-14-10-0
