0333-0-42-15-34-14-10-0
Mill-Max- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PIN RCPT
- CategoryTerminals - PC Pin Receptacles, Socket Connectors
- Datasheet 0333-0-42-15-34-14-10-0 Datasheet
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
- 1$0.8496
- 1,000$0.8496
Quote It
Technical Details
- Series:0333
- Package:Bulk
- Part Status:Active
- Tail Type:No Tail
- Termination:Press-Fit
- Length - Overall:0.220" (5.59mm)
- Accepts Pin Diameter:0.032" ~ 0.046" (0.81mm ~ 1.17mm)
- Accepts Square Pin Size:-
- Pin Hole Diameter:0.064" (1.63mm)
- Mounting Hole Diameter:0.076" (1.93mm)
- Flange Diameter:0.104" (2.64mm)
- Tail Diameter:-
- Socket Depth:0.195" (4.95mm)
- Contact Material:Beryllium Copper
- Contact Finish:Gold
- Contact Finish Thickness:10.0µin (0.25µm)
Related Products

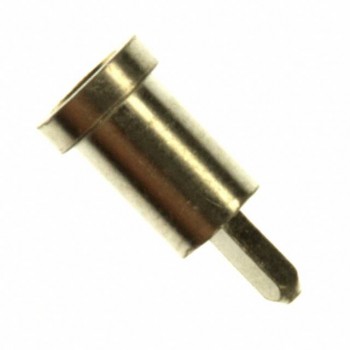

CONN RECEPT PIN .045-.065" .145"
