0324-3-15-15-34-27-10-0
Mill-Max- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PIN RCPT .032-.046 SWAGE
- CategoryTerminals - PC Pin Receptacles, Socket Connectors
- Datasheet 0324-3-15-15-34-27-10-0 Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$1.06965
- 1,000$1.0293
Quote It
Technical Details
- Series:324
- Package:Bulk
- Part Status:Active
- Tail Type:Standard Tail
- Termination:Swage
- Length - Overall:0.508" (12.90mm)
- Accepts Pin Diameter:0.032" ~ 0.046" (0.81mm ~ 1.17mm)
- Accepts Square Pin Size:-
- Pin Hole Diameter:0.064" (1.63mm)
- Mounting Hole Diameter:0.094" (2.39mm)
- Flange Diameter:0.125" (3.18mm)
- Tail Diameter:0.040" (1.02mm)
- Socket Depth:0.195" (4.95mm)
- Contact Material:Beryllium Copper
- Contact Finish:Gold
- Contact Finish Thickness:30.0µin (0.76µm)
Related Products
STD. CONNECTOR JACK RECEPTACLE
- 1: $1.08885
CONN PIN RCPT .015-.025 PRESSFIT

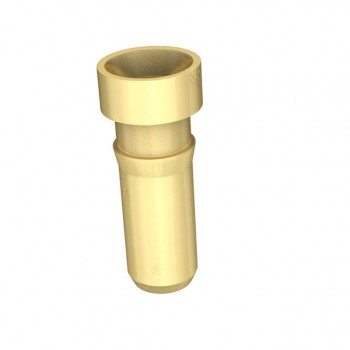

0253-0-15-01-30-27-10-0 Datasheet- 1: $1.09000
