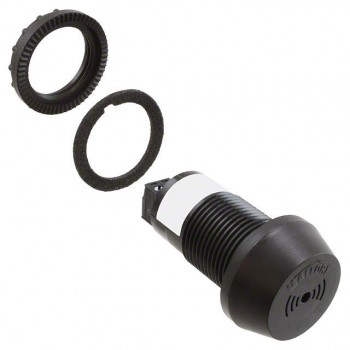

SBT5THPC
Mallory Sonalert Products
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIEC 3.3-5VDC 90DB TEMP-ENERGY RO
- CategoryAlarms, Buzzers, and Sirens
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$33.64
Quote It
Technical Details
- Series:SBT
- Package:Bulk
- Part Status:Active
- Driver Circuitry:Indicator, Internally Driven
- Input Type:DC
- Voltage - Rated:-
- Voltage Range:3.3 ~ 5V
- Frequency:2.075kHz
- Technology:Piezo
- Operating Mode:Pulse, Fast
- Duration:Repeating every 2.5 Sec
- Sound Pressure Level (SPL):85dB @ 3.3V, 10cm
- Current - Supply:35mA
- Port Location:Top
- Operating Temperature:-30°C ~ 65°C
- Approval Agency:cUL, UL
- Ratings:Medical
- Ingress Protection:-
- Mounting Type:Through Hole
- Termination:PC Pins
- Size / Dimension:1.750" Dia (44.45mm)
- Height - Seated (Max):0.551" (14.00mm)
