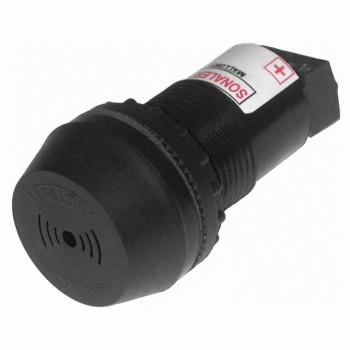

SC628AN-BTR
Mallory Sonalert Products
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionAUDIO PIEZO IND 6-28V PNL MNT
- CategoryAlarms, Buzzers, and Sirens
- Datasheet SC628AN-BTR Datasheet
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$38.68
Quote It
Technical Details
- Series:SC
- Package:Bulk
- Part Status:Active
- Driver Circuitry:Indicator, Internally Driven
- Input Type:AC, DC
- Voltage - Rated:-
- Voltage Range:6 ~ 28V
- Frequency:2.9kHz
- Technology:Piezo
- Operating Mode:Single Tone
- Duration:-
- Sound Pressure Level (SPL):80dB @ 6V, 61cm
- Current - Supply:4 ~ 30mA
- Port Location:Top
- Operating Temperature:-30°C ~ 65°C
- Approval Agency:cUL, UL
- Ratings:-
- Ingress Protection:-
- Mounting Type:Panel Mount
- Termination:Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
- Size / Dimension:1.692" Dia (42.98mm)
- Height - Seated (Max):1.399" (35.54mm)
