EEH-ZT1E331V
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM POLY HYB 330UF 25V SMD
- CategoryAluminum - Polymer Capacitors
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
- 1$2.79
Quote It
Technical Details
- Series:ZT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Hybrid
- Capacitance:330 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):16mOhm
- Lifetime @ Temp.:4000 Hrs @ 125°C
- Operating Temperature:-55°C ~ 125°C
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:525 mA @ 100 Hz
- Ripple Current @ High Frequency:3.5 A @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.425" (10.80mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
Related Products

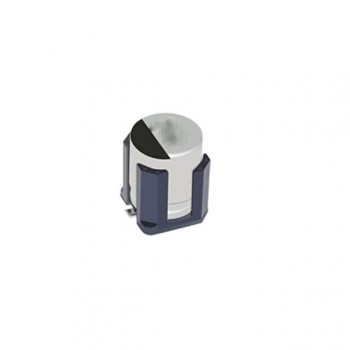

CAP ALUM POLY HYB 56UF 63V SMD
- 1: $2.79000
CAP ALUM POLY HYB 270UF 35V SMD
- 1: $2.79000

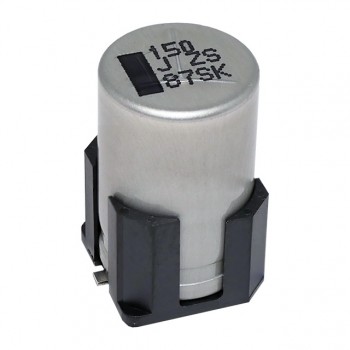

CAP ALUM POLY HYB 100UF 50V SMD
- 1: $2.79000
CAP POLYMER HYBRID 100UF 63V SMD
- 1: $2.54000
CAP POLYMER HYBRID 470UF 25V SMD
- 1: $2.54000
CAP ALUM POLY 560UF 20% 16V SMD
- 1: $3.27000
HYBRID POLYMER, V-CHIP, ANTI-VIB
- 1: $3.50000
CAP ALUM POLY 680UF 20% 16V SMD
- 1: $3.61000

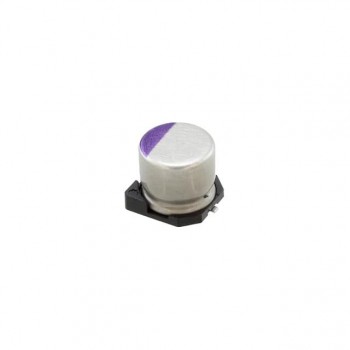

CAP ALUM POLY 820UF 20% 16V SMD
