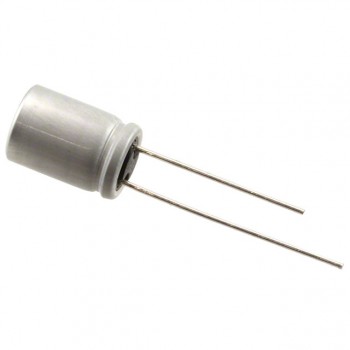

RS80J471MDN1
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM POLY 470UF 20% 6.3V T/H
- CategoryAluminum - Polymer Capacitors
- Datasheet RS80J471MDN1 Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$0.26314
- 1,000$0.26314
Quote It
Technical Details
- Series:FPCAP, RS8
- Package:Bulk
- Part Status:Active
- Type:Polymer
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):8mOhm
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:500 mA @ 120 Hz
- Ripple Current @ High Frequency:5 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.354" (9.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
