RNS1E150MDS1PX
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

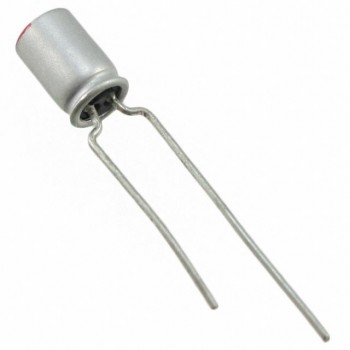

- DescriptionCAP ALUM POLY 15UF 20% 25V T/H
- CategoryAluminum - Polymer Capacitors
- Datasheet RNS1E150MDS1PX Datasheet
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
- 1$0.30653
- 2,000$0.27866
Quote It
Technical Details
- Series:FPCAP, RNS
- Package:Tape & Box (TB)
- Part Status:Active
- Type:Polymer
- Capacitance:15 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):49mOhm
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:220 mA @ 120 Hz
- Ripple Current @ High Frequency:2.2 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.098" (2.50mm)
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.433" (11.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
