RR70J681MDN1PH
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

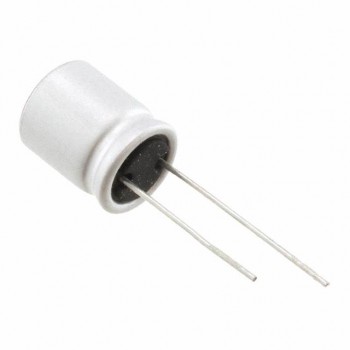

- DescriptionCAP ALUM POLY 680UF 20% 6.3V T/H
- CategoryAluminum - Polymer Capacitors
- Datasheet RR70J681MDN1PH Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$0.32936
- 1,000$0.32936
Quote It
Technical Details
- Series:FPCAP, RR7
- Package:Tape & Box (TB)
- Part Status:Active
- Type:Polymer
- Capacitance:680 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):7mOhm
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:610 mA @ 120 Hz
- Ripple Current @ High Frequency:6.1 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.197" (5.00mm)
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.551" (14.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
