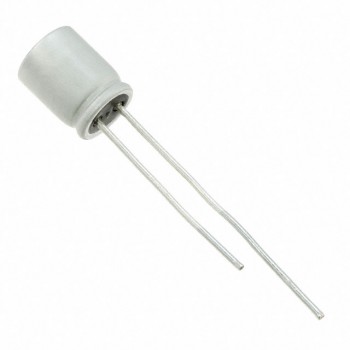

PLG0J821MCO1TD
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM POLY 820UF 20% 6.3V T/H
- CategoryAluminum - Polymer Capacitors
- Datasheet PLG0J821MCO1TD Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
- 1$1.91
- 1,000$0.64032
- 2,000$0.59763
- 5,000$0.57629
- 10,000$0.55494
Quote It
Technical Details
- Series:PLG
- Package:Cut Tape (CT)Tape & Box (TB)
- Part Status:Active
- Type:Polymer
- Capacitance:820 µF
- Tolerance:±20%
- Voltage - Rated:6.3 V
- ESR (Equivalent Series Resistance):9mOhm
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:5.7 A @ 100 kHz
- Impedance:-
- Lead Spacing:0.138" (3.50mm)
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.354" (9.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can
