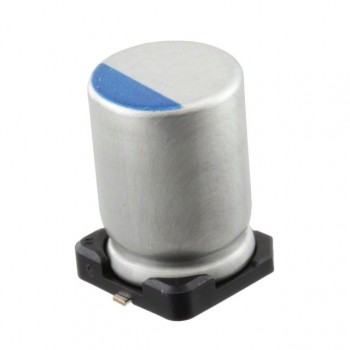

HHXC160ARA471MJA0G
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM POLY 470UF 20% 16V SMD
- CategoryAluminum - Polymer Capacitors
- Datasheet HHXC160ARA471MJA0G Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
- 1$0.87192
- 500$0.8323
Quote It
Technical Details
- Series:HXC
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Hybrid
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):18mOhm
- Lifetime @ Temp.:4000 Hrs @ 125°C
- Operating Temperature:-55°C ~ 125°C
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:2.1 A @ 100 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.413" (10.50mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
