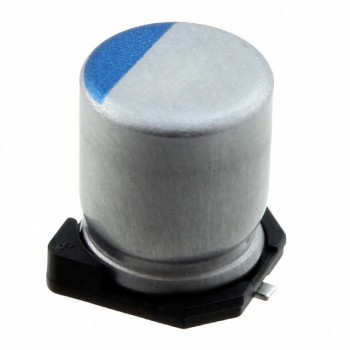

PCR0J272MCL1GS

Technical Details

• Series:PCR
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Type:Polymer
• Capacitance:2700 µF
• Tolerance:±20%
• Voltage - Rated:6.3 V
• ESR (Equivalent Series Resistance):11mOhm
• Lifetime @ Temp.:4000 Hrs @ 125°C
• Operating Temperature:-55°C ~ 125°C
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:-
• Ripple Current @ High Frequency:4.7 A @ 100 kHz
• Impedance:-
• Lead Spacing:-
• Size / Dimension:0.394" Dia (10.00mm)
• Height - Seated (Max):0.500" (12.70mm)
• Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
• Mounting Type:Surface Mount
• Package / Case:Radial, Can - SMD
