PCR1D560MCL1GS

Nichicon
In Stock: 128

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:PCR
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Obsolete
  • Type:Polymer
  • Capacitance:56 µF
  • Tolerance:±20%
  • Voltage - Rated:20 V
  • ESR (Equivalent Series Resistance):70mOhm
  • Lifetime @ Temp.:4000 Hrs @ 125°C
  • Operating Temperature:-55°C ~ 125°C
  • Ratings:-



  • Applications:General Purpose
  • Ripple Current @ Low Frequency:-
  • Ripple Current @ High Frequency:700 mA @ 100 kHz
  • Impedance:-
  • Lead Spacing:-
  • Size / Dimension:0.197" Dia (5.00mm)
  • Height - Seated (Max):0.240" (6.10mm)
  • Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Mounting Type:Surface Mount
  • Package / Case:Radial, Can - SMD

Related Products


PCR1E101MCL4GS

CAP ALUM POLY 100UF 20% 25V SMD

PCR1E101MCL4GS Datasheet

Call for price


PCR1E330MCL1GS

CAP ALUM POLY 33UF 20% 25V SMD

PCR1E330MCL1GS Datasheet

Call for price


PCR1E560MCL1GS

CAP ALUM POLY 56UF 20% 25V SMD

PCR1E560MCL1GS Datasheet

Call for price


PCR1H120MCL1GS

CAP ALUM POLY 12UF 20% 50V SMD

PCR1H120MCL1GS Datasheet

Call for price


PCR1H220MCL1GS

CAP ALUM POLY 22UF 20% 50V SMD

PCR1H220MCL1GS Datasheet

Call for price


PCR1H390MCL4GS

CAP ALUM POLY 39UF 20% 50V SMD

PCR1H390MCL4GS Datasheet

Call for price


PCR1J120MCL1GS

CAP ALUM POLY 12UF 20% 63V SMD

PCR1J120MCL1GS Datasheet

Call for price


PCR1J220MCL4GS

CAP ALUM POLY 22UF 20% 63V SMD

PCR1J220MCL4GS Datasheet

Call for price


PCR1J6R8MCL1GS

CAP ALUM POLY 6.8UF 20% 63V SMD

PCR1J6R8MCL1GS Datasheet

Call for price

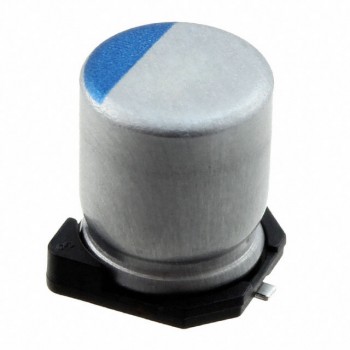

PCR1K120MCL1GS
