LM5109MAX

Texas Instruments
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionIC GATE DRVR HALF-BRIDGE 8SOIC
  • CategoryPMIC - Gate Drivers
  • ECAD Model
  • Share
In Stock: 138

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Tape & Reel (TR)
  • Part Status:Obsolete
  • Driven Configuration:Half-Bridge
  • Channel Type:Independent
  • Number of Drivers:2
  • Gate Type:N-Channel MOSFET
  • Voltage - Supply:8V ~ 14V
  • Logic Voltage - VIL, VIH:0.8V, 2.2V



  • Current - Peak Output (Source, Sink):1A, 1A
  • Input Type:Non-Inverting
  • High Side Voltage - Max (Bootstrap):118 V
  • Rise / Fall Time (Typ):15ns, 15ns
  • Operating Temperature:-40°C ~ 125°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package:8-SOIC

Related Products


IX2113BTR

IC GATE DRVR HALF-BRIDGE 16SOIC

IX2113BTR Datasheet

Call for price


IX2113B

IC GATE DRVR HALF-BRIDGE 16SOIC

IX2113B Datasheet

Call for price


L6743B

IC GATE DRVR HALF-BRIDGE 8VFDFPN

L6743B Datasheet

Call for price


L6747A

IC GATE DRVR HALF-BRIDGE 8VFDFPN

L6747A Datasheet

Call for price


P9090-0NLGI

IC GATE DRVR SGL PHASE QFN

Call for price


FAN3122CMX-F085

IC GATE DRVR LOW-SIDE 8SOIC

FAN3122CMX-F085 Datasheet
  • 1: $1.15424

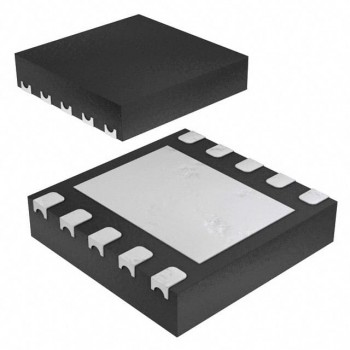

MIC4605-1YMT-T5

IC GATE DRVR HALF-BRIDGE 10TDFN

MIC4605-1YMT-T5 Datasheet
  • 1: $1.42000
  • 500: $1.11240

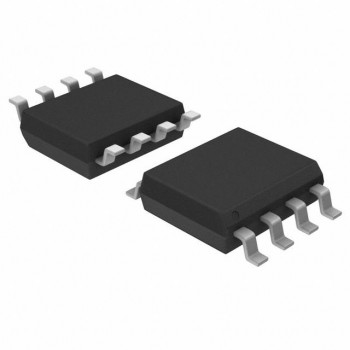

MIC4605-2YM-T5

IC GATE DRVR HALF-BRIDGE 8SOIC

MIC4605-2YM-T5 Datasheet

Call for price

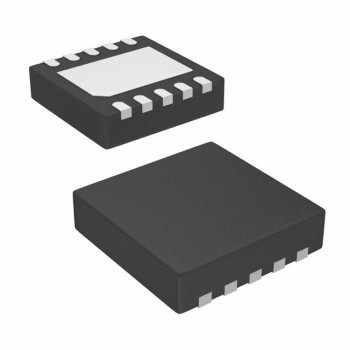

MIC4605-2YMT-T5
