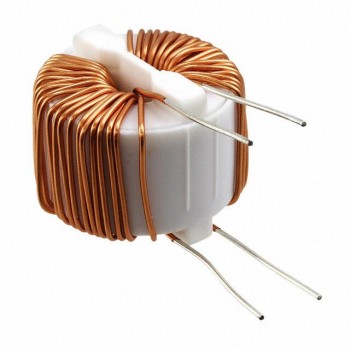

B82791G0015A014
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCMC 38MH 100MA 2LN TH
- CategoryCommon Mode Chokes
- Datasheet B82791G0015A014 Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$1.91269
- 320$1.91269
Quote It
Technical Details
- Series:B82791
- Package:Tape & Reel (TR)
- Part Status:Active
- Filter Type:Signal Line
- Number of Lines:2
- Impedance @ Frequency:-
- Inductance @ Frequency:38 mH @ 10 kHz
- Frequency Coupled to Inductance @ Frequency:-
- Current Rating (Max):100mA
- DC Resistance (DCR) (Max):5Ohm (Typ)
- Voltage Rating - DC:80V
- Voltage Rating - AC:42V
- Operating Temperature:-40°C ~ 125°C
- Ratings:-
- Approval Agency:-
- Features:-
- Mounting Type:Through Hole
- Size / Dimension:0.689" L x 0.689" W (17.50mm x 17.50mm)
- Height (Max):0.315" (8.00mm)
- Package / Case:Horizontal, 4 PC Pin
