- Lifecycle status Active
- RoHS RoHS Compliant

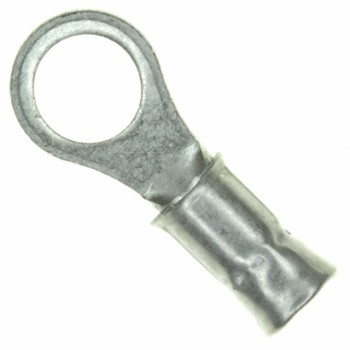

- DescriptionCONN RING CIRC 16-22AWG #10
- CategoryTerminals - Ring Connectors
- Datasheet 31398 Datasheet
-
ECAD Model
- Share
In Stock: 407
Can ship immediately
Pricing:
- 1$0.86
- 10$0.80096
- 25$0.72137
- 50$0.64128
- 100$0.61445
- 250$0.56108
- 500$0.53436
- 1,000$0.44085
- 2,500$0.40076
Quote It
Technical Details
- Series:Diamond Grip
- Package:Bulk
- Part Status:Active
- Terminal Type:Circular
- Stud/Tab Size:10 Stud
- Thickness:0.031" (0.79mm)
- Width - Outer Edges:0.281" (7.14mm)
- Length - Overall:0.728" (18.49mm)
- Mounting Type:Free Hanging (In-Line)
- Termination:Crimp
- Wire Gauge:16-22 AWG
- Insulation:Non-Insulated
- Features:Serrated Termination
- Color:-
- Contact Material:Copper
- Contact Finish:Tin
