CD40175BPWR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCD40175B CMOS QUAD D-TYPE FLIP-F
- CategoryLogic - Flip Flops
-
ECAD Model
- Share
In Stock: 11,055
Can ship immediately
Pricing:
- 1$0.16
- 2,000$0.16
- 6,000$0.14968
- 10,000$0.13935
Quote It
Technical Details
- Series:4000B
- Package:Bulk
- Part Status:Active
- Function:Master Reset
- Type:D-Type
- Output Type:Complimentary
- Number of Elements:1
- Number of Bits per Element:4
- Clock Frequency:14 MHz
- Max Propagation Delay @ V, Max CL:120ns @ 15V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:6.8mA, 6.8mA
- Voltage - Supply:3V ~ 18V
- Current - Quiescent (Iq):4 µA
- Input Capacitance:5 pF
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:16-TSSOP
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
Related Products
SN74LV273A OCTAL D-TYPE FLIP-FLO
- 1: $0.16000
- 3000: $0.16000
- 6000: $0.14968
SN74LV374AT SN74LV374AT
- 1: $0.16000
- 2000: $0.16000
- 6000: $0.14968
SN74AHC574 OCTAL EDGE-TRIGGERED
- 1: $0.16000
- 2000: $0.16000
- 6000: $0.14968
SN74LV374A OCTAL EDGE-TRIGGERED
- 1: $0.16000
- 2000: $0.16000
- 6000: $0.14968
SN74LV574A OCTAL EDGE-TRIGGERED
- 1: $0.16000
- 2000: $0.16000
- 6000: $0.14968

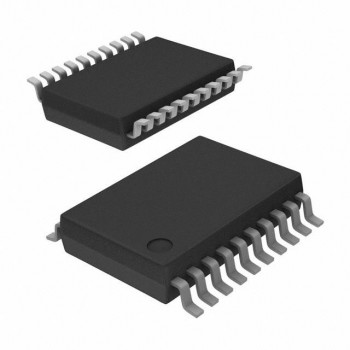

SN74LVC374A OCTAL EDGE-TRIGGERED
