SN74HC174DBR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSN74HC174 HEX D-TYPE FLIP-FLOPS
- CategoryLogic - Flip Flops
-
ECAD Model
- Share
In Stock: 22,415
Can ship immediately
Pricing:
- 1$0.17
- 2,000$0.17
- 6,000$0.15903
- 10,000$0.14806
Quote It
Technical Details
- Series:74HC
- Package:Bulk
- Part Status:Active
- Function:Master Reset
- Type:D-Type
- Output Type:Non-Inverted
- Number of Elements:1
- Number of Bits per Element:6
- Clock Frequency:50 MHz
- Max Propagation Delay @ V, Max CL:27ns @ 6V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:5.2mA, 5.2mA
- Voltage - Supply:2V ~ 6V
- Current - Quiescent (Iq):8 µA
- Input Capacitance:3 pF
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:16-SSOP
- Package / Case:16-SSOP (0.209", 5.30mm Width)
Related Products
SN74AHC174 HEX D-TYPE FLIP-FLOPS
- 1: $0.17000
- 2000: $0.17000
- 6000: $0.15903
SN74AHC273 OCTAL D-TYPE FLIP-FLO
- 1: $0.17000
- 2000: $0.17000
- 6000: $0.15903
SN74AHC273 OCTAL D-TYPE FLIP-FLO
- 1: $0.17000
- 2000: $0.17000
- 6000: $0.15903
SN74LVC374A OCTAL EDGE-TRIGGERED
- 1: $0.17000
- 2000: $0.17000
- 6000: $0.15903
SN74HC109 DUAL J-K POSITIVE-EDGE
- 1: $0.17000
- 2000: $0.17000
- 6000: $0.15903

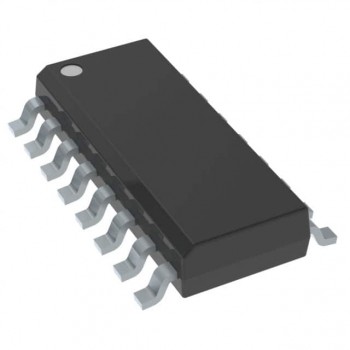

SN74HC174 HEX D-TYPE FLIP-FLOPS
- 1: $0.17000
- 2000: $0.17000
- 6000: $0.15903

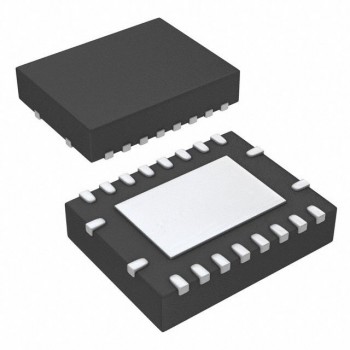

SN74LV574A OCTAL EDGE-TRIGGERED
