MC74LVX574DTR2G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionBUS DRIVER, LV/LV-A/LVX/H SERIES
- CategoryLogic - Flip Flops
- Datasheet MC74LVX574DTR2G Datasheet
-
ECAD Model
- Share
In Stock: 19,957
Can ship immediately
Pricing:
- 1$0.26
- 2,500$0.23304
Quote It
Technical Details
- Series:74LVX
- Package:Bulk
- Part Status:Active
- Function:Standard
- Type:D-Type
- Output Type:Tri-State, Non-Inverted
- Number of Elements:1
- Number of Bits per Element:8
- Clock Frequency:75 MHz
- Max Propagation Delay @ V, Max CL:16.7ns @ 3.3V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:4mA, 4mA
- Voltage - Supply:2V ~ 3.6V
- Current - Quiescent (Iq):4 µA
- Input Capacitance:4 pF
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:20-TSSOP
- Package / Case:20-TSSOP (0.173", 4.40mm Width)
Related Products
74LVCH162374A - 16-BIT EDGE-TRIG
- 1: $0.26000
- 2000: $0.26000
SN74AUC2G80 DUAL POSITIVE-EDGE-T
- 1: $0.26000
- 3000: $0.25665

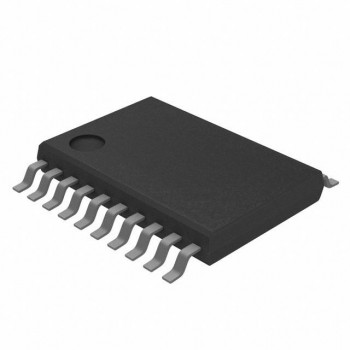

SN74LVC374A-Q1 AUTOMOTIVE CATALO
