MC74LCX574DTG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionBUS DRIVER, LVC/LCX/Z SERIES, 1-
- CategoryLogic - Flip Flops
- Datasheet MC74LCX574DTG Datasheet
-
ECAD Model
- Share
In Stock: 15,613
Can ship immediately
Pricing:
- 1$0.28
- 75$0.22525
- 150$0.18019
- 525$0.14157
- 1,050$0.1094
Quote It
Technical Details
- Series:74LCX
- Package:Bulk
- Part Status:Active
- Function:Standard
- Type:D-Type
- Output Type:Tri-State, Non-Inverted
- Number of Elements:1
- Number of Bits per Element:8
- Clock Frequency:150 MHz
- Max Propagation Delay @ V, Max CL:8.5ns @ 3.3V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:24mA, 24mA
- Voltage - Supply:2V ~ 3.6V
- Current - Quiescent (Iq):10 µA
- Input Capacitance:7 pF
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:20-TSSOP
- Package / Case:20-TSSOP (0.173", 4.40mm Width)
Related Products
SN74LS112A DUAL J-K NEGATIVE-EDG
- 1: $0.28000
- 2500: $0.27840
- 5000: $0.25920
BUS DRIVER, HCT SERIES, 1-FUNC,
- 1: $0.29000
- 1000: $0.29000
CD74HC374 HIGH SPEED CMOS LOGIC
- 1: $0.29000
- 2000: $0.28565
- 6000: $0.26595
CD74HCT273 HIGH SPEED CMOS LOGIC
- 1: $0.29000
- 2000: $0.28565
- 6000: $0.26595

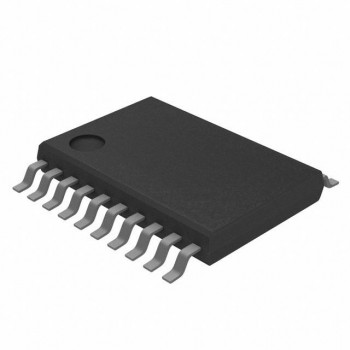

CD74HCT574 HIGH SPEED CMOS LOGIC
