SN74AC534NSR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSN74AC534 OCTAL EDGE-TRIGGERED D
- CategoryLogic - Flip Flops
-
ECAD Model
- Share
In Stock: 115
Can ship immediately
Pricing:
- 1$0.34583
- 2,000$0.32625
Quote It
Technical Details
- Series:74AC
- Package:Bulk
- Part Status:Active
- Function:Standard
- Type:D-Type
- Output Type:Tri-State, Inverted
- Number of Elements:1
- Number of Bits per Element:8
- Clock Frequency:150 MHz
- Max Propagation Delay @ V, Max CL:10.5ns @ 5V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:24mA, 24mA
- Voltage - Supply:2V ~ 6V
- Current - Quiescent (Iq):4 µA
- Input Capacitance:4.5 pF
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:20-SO
- Package / Case:20-SOIC (0.209", 5.30mm Width)
Related Products
IC D-TYPE POS TRG SNGL 20SO
- 1: $0.33000
CY74FCT821T 10-BIT BUS INTERFACE
- 1: $0.34000
- 1100: $0.14422
CY74FCT574T OCTAL EDGE-TRIGGERED
- 1: $0.34000
- 10: $0.29730
- 25: $0.27943
SN74LVTH374 3.3-V ABT OCTAL EDGE
- 1: $0.34000
- 2000: $0.32075
- 6000: $0.29863

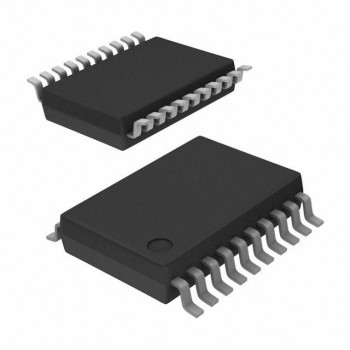

SN74AC374 OCTAL D-TYPE EDGE-TRIG
