SN74ACT534PWR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSN74ACT534 OCTAL EDGE-TRIGGERED
- CategoryLogic - Flip Flops
-
ECAD Model
- Share
In Stock: 4,103
Can ship immediately
Pricing:
- 1$0.42
- 2,000$0.31465
- 6,000$0.29295
- 10,000$0.2821
Quote It
Technical Details
- Series:74ACT
- Package:Bulk
- Part Status:Active
- Function:Standard
- Type:D-Type
- Output Type:Tri-State, Inverted
- Number of Elements:1
- Number of Bits per Element:8
- Clock Frequency:100 MHz
- Max Propagation Delay @ V, Max CL:11.5ns @ 5V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:24mA, 24mA
- Voltage - Supply:4.5V ~ 5.5V
- Current - Quiescent (Iq):4 µA
- Input Capacitance:4.5 pF
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:20-TSSOP
- Package / Case:20-TSSOP (0.173", 4.40mm Width)
Related Products

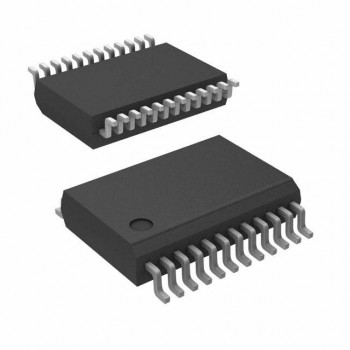

SN74LVC823A 9-BIT BUS-INTERFACE
- 1: $0.43000
- 2000: $0.40566
- 6000: $0.38538
SN74LVC823A 9-BIT BUS-INTERFACE
- 1: $0.43000
- 2000: $0.40566
- 6000: $0.38538
SN74ALS174 HEX D-TYPE POSITIVE-E
- 1: $0.44000
- 2000: $0.41510
- 6000: $0.39434

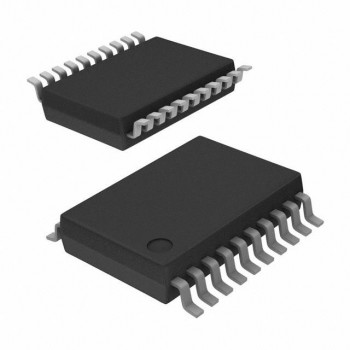

SN74ABT377A OCTAL EDGE-TRIGGERED
- 1: $0.45114
- 2000: $0.33060
- 6000: $0.30780

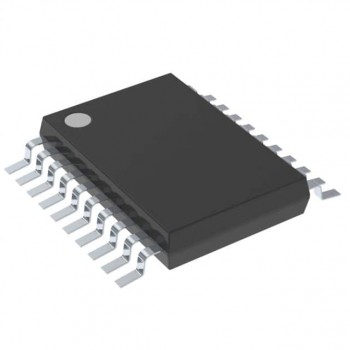

SN74ABT374A OCTAL EDGE-TRIGGERED
