SN74ABT16823DL
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSN74ABT16823 18-BIT BUS INTERFAC
- CategoryLogic - Flip Flops
-
ECAD Model
- Share
In Stock: 2,592
Can ship immediately
Pricing:
- 1$2.09
- 180$2.09
Quote It
Technical Details
- Series:74ABT
- Package:Bulk
- Part Status:Active
- Function:Master Reset
- Type:D-Type
- Output Type:Tri-State, Non-Inverted
- Number of Elements:2
- Number of Bits per Element:9
- Clock Frequency:150 MHz
- Max Propagation Delay @ V, Max CL:5.5ns @ 5V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:32mA, 64mA
- Voltage - Supply:4.5V ~ 5.5V
- Current - Quiescent (Iq):500 µA
- Input Capacitance:3.5 pF
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:56-SSOP
- Package / Case:56-BSSOP (0.295", 7.50mm Width)
Related Products
74ACT11374 OCTAL EDGE-TRIGGERED
- 1: $2.13000
- 2000: $1.91387
SN74ALVCH162721 3.3-V 20-BIT FLI
- 1: $2.15000
- 2000: $1.92717
SN74AS174 HEX D-TYPE POSITIVE-ED
- 1: $2.22000
- 2000: $1.99633
SN74AS174 HEX D-TYPE POSITIVE-ED
- 1: $2.22000
- 175: $2.22000
SN74ALS534A OCTAL D-TYPE EDGE-TR
- 1: $2.28000
- 2000: $2.04421
SN74AS175B QUADRUPLE D-TYPE POSI
- 1: $2.30000
- 2000: $2.06549
SN74AS175B QUADRUPLE D-TYPE POSI
- 1: $2.30000
- 175: $2.30000

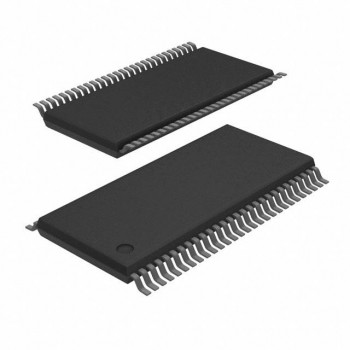

SN74ALVTH16821 2.5-V/3.3-V 20-BI
- 1: $2.30000
- 2000: $2.06549

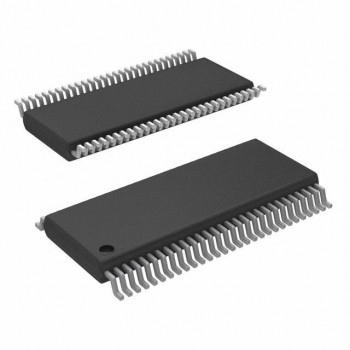

SN74ALVTH16821 2.5-V/3.3-V 20-BI
