SN74HCS74BQAR

Texas Instruments
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionSCHMITT-TRIGGER INPUT DUAL D-TYP
  • CategoryLogic - Flip Flops
  • ECAD Model
  • Share
In Stock: 129

Can ship immediately

Pricing:
  • 1$0.4

Quote It

Technical Details

  • Series:74HCS
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Function:Set(Preset) and Reset
  • Type:D-Type
  • Output Type:Complimentary
  • Number of Elements:2
  • Number of Bits per Element:1
  • Clock Frequency:105 MHz
  • Max Propagation Delay @ V, Max CL:15ns @ 6V, 50pF



  • Trigger Type:Positive Edge
  • Current - Output High, Low:7.8mA, 7.8mA
  • Voltage - Supply:2V ~ 6V
  • Current - Quiescent (Iq):2 µA
  • Input Capacitance:5 pF
  • Operating Temperature:-40°C ~ 125°C (TA)
  • Mounting Type:Surface Mount
  • Supplier Device Package:14-WQFN (3x2.5)
  • Package / Case:14-QFN Exposed Pad

Related Products


MC74AC374DW
  • 1: $0.12000

MC74HC174AD
  • 1: $0.12000

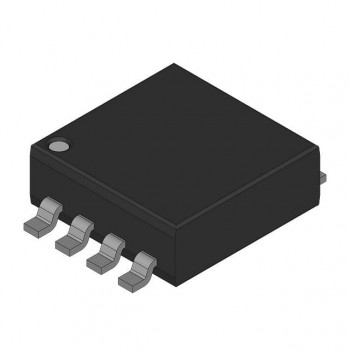

74LVC2G74DP-Q100125

D FLIP-FLOP, LVC/LCX/Z SERIES

  • 1: $0.12000

HEF4027BT/S400118

J-K FLIP-FLOP, 2-BIT

  • 1: $0.12000

MC74F74MR1

D FLIP-FLOP

  • 1: $0.12000

CD4013BEX

CMOS DUAL D-TYPE FLIP-FLOP

  • 1: $0.13000

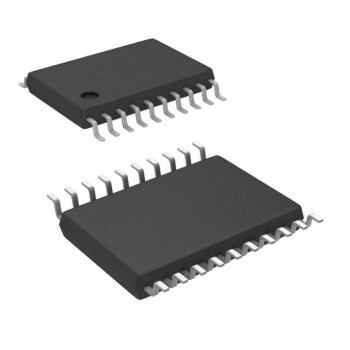

MC74HC374ADT
  • 1: $0.14000

MC74HCT374ADWR2

BUS DRIVER

  • 1: $0.14000

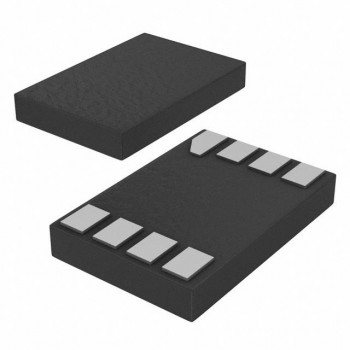

74LVC2G74GD,125
