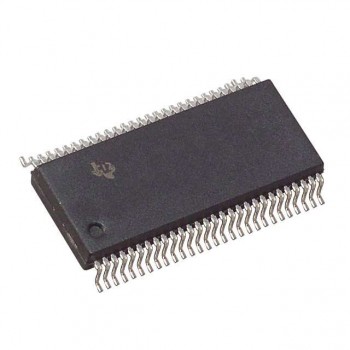

74ABTH16823DGGRG4
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC FF D-TYPE DUAL 9BIT 56TSSOP
- CategoryLogic - Flip Flops
-
ECAD Model
- Share
In Stock: 189
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:74ABTH
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Function:Master Reset
- Type:D-Type
- Output Type:Tri-State, Non-Inverted
- Number of Elements:2
- Number of Bits per Element:9
- Clock Frequency:150 MHz
- Max Propagation Delay @ V, Max CL:5.5ns @ 5V, 50pF
- Trigger Type:Positive Edge
- Current - Output High, Low:32mA, 64mA
- Voltage - Supply:4.5V ~ 5.5V
- Current - Quiescent (Iq):500 µA
- Input Capacitance:4 pF
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Supplier Device Package:56-TSSOP
- Package / Case:56-TFSOP (0.240", 6.10mm Width)
