MCT52103S

ON Semiconductor
In Stock: 135

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Obsolete
  • Number of Channels:1
  • Voltage - Isolation:5300Vrms
  • Current Transfer Ratio (Min):70% @ 3mA
  • Current Transfer Ratio (Max):-
  • Turn On / Turn Off Time (Typ):10µs, 400ns
  • Rise / Fall Time (Typ):-
  • Input Type:DC



  • Output Type:Transistor with Base
  • Voltage - Output (Max):30V
  • Current - Output / Channel:150mA
  • Voltage - Forward (Vf) (Typ):1.25V
  • Current - DC Forward (If) (Max):50 mA
  • Vce Saturation (Max):400mV
  • Operating Temperature:-55°C ~ 100°C
  • Mounting Type:Surface Mount
  • Package / Case:6-SMD, Gull Wing
  • Supplier Device Package:6-SMD

Related Products


MCT52103SD

OPTOISO 5.3KV TRANS W/BASE 6SMD

MCT52103SD Datasheet

Call for price


MCT5210SD

OPTOISO 5.3KV TRANS W/BASE 6SMD

MCT5210SD Datasheet

Call for price

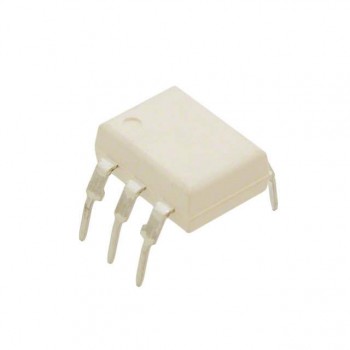

MCT5210W
