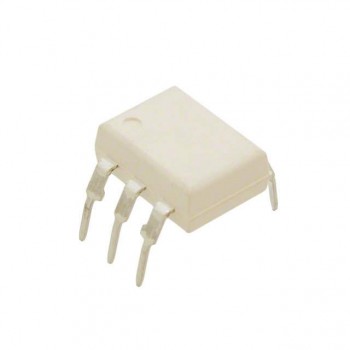

MOC8113W
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionOPTOISOLATOR 5.3KV TRANS 6-DIP
- CategoryOptoisolators - Transistor, Photovoltaic Output
- Datasheet MOC8113W Datasheet
-
ECAD Model
- Share
In Stock: 101
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Number of Channels:1
- Voltage - Isolation:5300Vrms
- Current Transfer Ratio (Min):100% @ 10mA
- Current Transfer Ratio (Max):-
- Turn On / Turn Off Time (Typ):4.2µs, 23µs
- Rise / Fall Time (Typ):3µs, 14µs
- Input Type:DC
- Output Type:Transistor
- Voltage - Output (Max):70V
- Current - Output / Channel:-
- Voltage - Forward (Vf) (Typ):1.15V
- Current - DC Forward (If) (Max):90 mA
- Vce Saturation (Max):400mV
- Operating Temperature:-55°C ~ 100°C
- Mounting Type:Through Hole
- Package / Case:6-DIP (0.400", 10.16mm)
- Supplier Device Package:6-DIP
