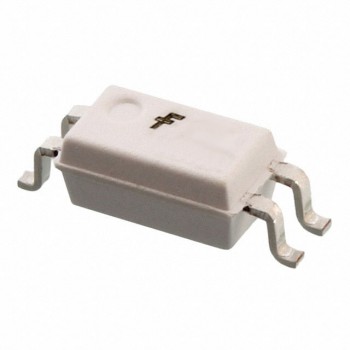

HMAA2705R1
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionOPTOISO 3.75KV TRANSISTOR 4SMD
- CategoryOptoisolators - Transistor, Photovoltaic Output
- Datasheet HMAA2705R1 Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Number of Channels:1
- Voltage - Isolation:3750Vrms
- Current Transfer Ratio (Min):50% @ 5mA
- Current Transfer Ratio (Max):300% @ 5mA
- Turn On / Turn Off Time (Typ):-
- Rise / Fall Time (Typ):3µs, 3µs
- Input Type:AC, DC
- Output Type:Transistor
- Voltage - Output (Max):40V
- Current - Output / Channel:80mA
- Voltage - Forward (Vf) (Typ):1.3V (Max)
- Current - DC Forward (If) (Max):50 mA
- Vce Saturation (Max):300mV
- Operating Temperature:-40°C ~ 100°C
- Mounting Type:Surface Mount
- Package / Case:4-SMD, Gull Wing
- Supplier Device Package:4-SMD
