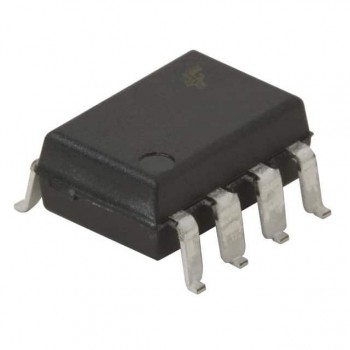

HCPL2730WV
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionOPTOISO 2.5KV 2CH DARL 8DIP
- CategoryOptoisolators - Transistor, Photovoltaic Output
- Datasheet HCPL2730WV Datasheet
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Number of Channels:2
- Voltage - Isolation:2500Vrms
- Current Transfer Ratio (Min):300% @ 1.6mA
- Current Transfer Ratio (Max):-
- Turn On / Turn Off Time (Typ):300ns, 5µs
- Rise / Fall Time (Typ):-
- Input Type:DC
- Output Type:Darlington
- Voltage - Output (Max):7V
- Current - Output / Channel:60mA
- Voltage - Forward (Vf) (Typ):1.3V
- Current - DC Forward (If) (Max):20 mA
- Vce Saturation (Max):-
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Through Hole
- Package / Case:8-DIP (0.400", 10.16mm)
- Supplier Device Package:8-DIP
