TLP331(BV,F)
Toshiba Electronic Devices and Storage Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionOPTOISO 5KV TRANS W/BASE 6DIP
- CategoryOptoisolators - Transistor, Photovoltaic Output
- Datasheet TLP331(BV,F) Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Number of Channels:1
- Voltage - Isolation:5000Vrms
- Current Transfer Ratio (Min):200% @ 1mA
- Current Transfer Ratio (Max):1200% @ 1mA
- Turn On / Turn Off Time (Typ):10µs, 8µs
- Rise / Fall Time (Typ):8µs, 8µs
- Input Type:DC
- Output Type:Transistor with Base
- Voltage - Output (Max):55V
- Current - Output / Channel:50mA
- Voltage - Forward (Vf) (Typ):1.15V
- Current - DC Forward (If) (Max):50 mA
- Vce Saturation (Max):400mV
- Operating Temperature:-55°C ~ 100°C
- Mounting Type:Through Hole

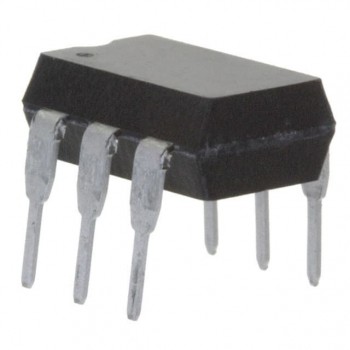

- Package / Case:6-DIP (0.300", 7.62mm)
- Supplier Device Package:6-DIP
