4N29TM
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionOPTOISO 4.17KV TRANS W/BASE 6DIP
- CategoryOptoisolators - Transistor, Photovoltaic Output
- Datasheet 4N29TM Datasheet
-
ECAD Model
- Share
In Stock: 157
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Number of Channels:1
- Voltage - Isolation:4170Vrms
- Current Transfer Ratio (Min):100% @ 10mA
- Current Transfer Ratio (Max):-
- Turn On / Turn Off Time (Typ):5µs, 40µs (Max)
- Rise / Fall Time (Typ):-
- Input Type:DC
- Output Type:Darlington with Base
- Voltage - Output (Max):30V
- Current - Output / Channel:150mA
- Voltage - Forward (Vf) (Typ):1.2V
- Current - DC Forward (If) (Max):80 mA
- Vce Saturation (Max):1V
- Operating Temperature:-40°C ~ 100°C
- Mounting Type:Through Hole

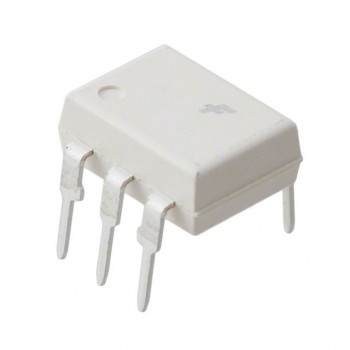

- Package / Case:6-DIP (0.400", 10.16mm)
- Supplier Device Package:6-DIP
