FOD8153SD
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionOPTOISOLATOR 5KV DARLINGTON 4SMD
- CategoryOptoisolators - Transistor, Photovoltaic Output
- Datasheet FOD8153SD Datasheet
-
ECAD Model
- Share
In Stock: 140
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Number of Channels:1
- Voltage - Isolation:5000Vrms
- Current Transfer Ratio (Min):600% @ 1mA
- Current Transfer Ratio (Max):7500% @ 1mA
- Turn On / Turn Off Time (Typ):-
- Rise / Fall Time (Typ):60µs, 53µs
- Input Type:DC
- Output Type:Darlington
- Voltage - Output (Max):35V
- Current - Output / Channel:80mA
- Voltage - Forward (Vf) (Typ):1.2V
- Current - DC Forward (If) (Max):50 mA
- Vce Saturation (Max):1V
- Operating Temperature:-30°C ~ 105°C
- Mounting Type:Surface Mount
- Package / Case:4-SMD, Gull Wing
- Supplier Device Package:4-SMD
Related Products

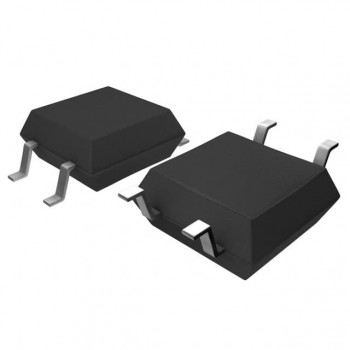

OPTOISO PHOTOTRANS 4PIN
