PS2913-1-F3-K-A
CEL (California Eastern Laboratories)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionOPTOISOLATOR 2.5KV TRANS 4SMD
- CategoryOptoisolators - Transistor, Photovoltaic Output
- Datasheet PS2913-1-F3-K-A Datasheet
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Number of Channels:1
- Voltage - Isolation:2500Vrms
- Current Transfer Ratio (Min):100% @ 1mA
- Current Transfer Ratio (Max):200% @ 1mA
- Turn On / Turn Off Time (Typ):80µs, 50µs
- Rise / Fall Time (Typ):10µs, 10µs
- Input Type:DC
- Output Type:Transistor
- Voltage - Output (Max):120V
- Current - Output / Channel:30mA
- Voltage - Forward (Vf) (Typ):1.1V
- Current - DC Forward (If) (Max):50 mA
- Vce Saturation (Max):300mV
- Operating Temperature:-55°C ~ 100°C
- Mounting Type:Surface Mount

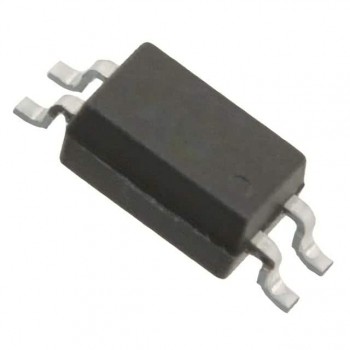

- Package / Case:4-SMD, Flat Leads
- Supplier Device Package:4-Mini-Flat
