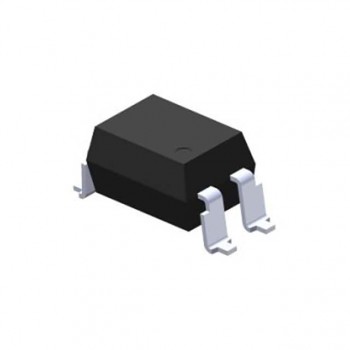

EL817(S)(D)(TB)-V
Everlight Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionOPTOISOLTR 5KV TRANSISTOR 4-SMD
- CategoryOptoisolators - Transistor, Photovoltaic Output
- Datasheet EL817(S)(D)(TB)-V Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Discontinued at Digi-Key
- Number of Channels:1
- Voltage - Isolation:5000Vrms
- Current Transfer Ratio (Min):300% @ 5mA
- Current Transfer Ratio (Max):600% @ 5mA
- Turn On / Turn Off Time (Typ):-
- Rise / Fall Time (Typ):4µs, 3µs
- Input Type:DC
- Output Type:Transistor
- Voltage - Output (Max):35V
- Current - Output / Channel:50mA
- Voltage - Forward (Vf) (Typ):1.2V
- Current - DC Forward (If) (Max):60 mA
- Vce Saturation (Max):200mV
- Operating Temperature:-55°C ~ 110°C
- Mounting Type:Surface Mount
- Package / Case:4-SMD, Gull Wing
- Supplier Device Package:4-SMD
