SFH601-4X007
Vishay / Semiconductor - Opto Division
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionOPTOISO 5.3KV TRANS W/BASE 6SMD
- CategoryOptoisolators - Transistor, Photovoltaic Output
- Datasheet SFH601-4X007 Datasheet
-
ECAD Model
- Share
In Stock: 194
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Number of Channels:1
- Voltage - Isolation:5300Vrms
- Current Transfer Ratio (Min):160% @ 10mA
- Current Transfer Ratio (Max):320% @ 10mA
- Turn On / Turn Off Time (Typ):3µs, 2.3µs
- Rise / Fall Time (Typ):2µs, 2µs
- Input Type:DC
- Output Type:Transistor with Base
- Voltage - Output (Max):100V
- Current - Output / Channel:50mA
- Voltage - Forward (Vf) (Typ):1.25V
- Current - DC Forward (If) (Max):60 mA
- Vce Saturation (Max):400mV
- Operating Temperature:-55°C ~ 100°C
- Mounting Type:Surface Mount

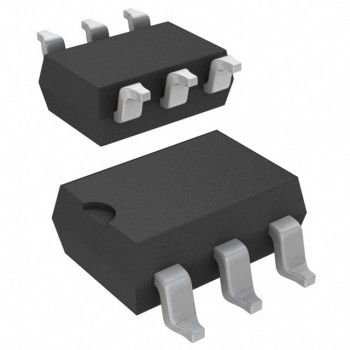

- Package / Case:6-SMD, Gull Wing
- Supplier Device Package:6-SMD
